GATE

INTRO

The BPMN 2.0 bpe_gateways module provides gateway processing logic (vertices) for managing branching, merging, and parallel execution paths inside process graphs.

GATEWAYS

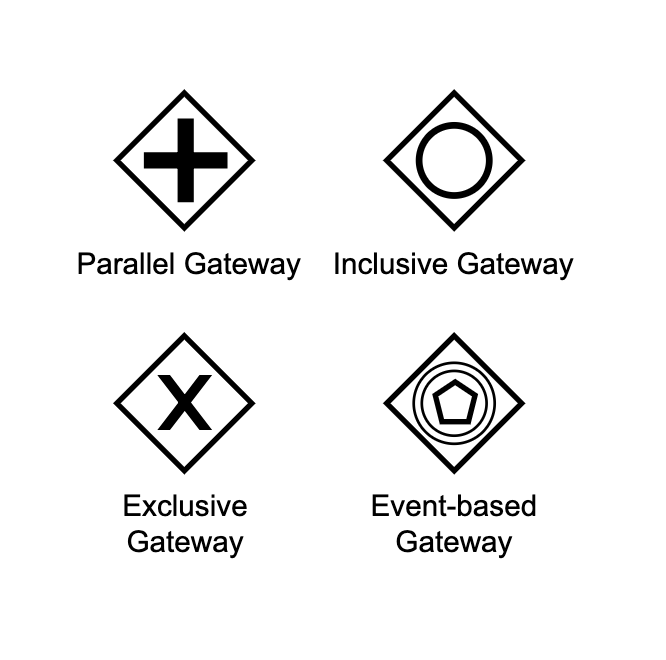

Supported gateway types:

Exclusive (Exclusive Gateway): Splits the flow choosing exactly one outgoing branch. BPE evaluates the conditions of all outgoing sequenceFlows in order and fires the first one that returns true. A default sequenceFlow can be specified in the def attribute if all conditions evaluate to false.
Parallel (Parallel Gateway): Splits the execution into multiple concurrent flows, or acts as a synchronizing merge. When merging, the engine blocks and checks if all incoming flows have reached the gateway (using history logs). Execution proceeds only when all incoming flows have arrived.
Inclusive (Inclusive Gateway): Evaluates all outgoing sequenceFlow conditions and spawns concurrent paths for all conditions that evaluate to true. Like the parallel gateway, it acts as a synchronizing merge on incoming paths.
Complex (Complex Gateway): Allows building complex custom branching and merging logic.

ERLANG RECORDS IN XML

BPE parses BPMN XML documents and dynamically compiles conditions from <bpmn:conditionExpression> tags. The text within the tag is treated as an Erlang term string and parsed using erl_scan and erl_eval at load-time to yield Erlang tuples/records.

1. Condition Tuples (evaluated in check_flow_condition/2)

BPE supports multiple condition records defined in bpe.hrl:

A. Compare Condition: `{compare, BpeDocParam, FieldIndex, ConstCheckAgainst}`

Queries the process environment documents (Proc#process.docs) matching the pattern BpeDocParam (via bpe_env:find/3). It then verifies if the element at index FieldIndex of the matched record equals ConstCheckAgainst.

XML Condition Expression Example:

<bpmn:sequenceFlow id="Flow_1"
  sourceRef="Task_A"
  targetRef="Task_B">
  <bpmn:conditionExpression
    xsi:type="bpmn:tFormalExpression">
    {compare, {payment, [], [], []}, 3, 100}
  </bpmn:conditionExpression>
</bpmn:sequenceFlow>

Note: The above matches any `#payment{}` document and checks if its third field equals `100`.

B. Service Condition: `{service, Fun}` or `{service, Fun, Module}`

Delegates condition evaluation to an Erlang function callback. BPE executes Module:Fun(Proc) which must return true or false.

XML Condition Expression Example:

<bpmn:sequenceFlow id="Flow_2"
  sourceRef="Task_A"
  targetRef="Task_B">
  <bpmn:conditionExpression
    xsi:type="bpmn:tFormalExpression">
    {service, check_payment_validity, finance_module}
  </bpmn:conditionExpression>
</bpmn:sequenceFlow>

C. Gateway Block Condition: `{service, gw_block}`

A special condition that checks if there is an active blocking rule in Mnesia under the gw_block table for the gateway source and the process ID. The flow is blocked if a block is found.

D. Default / Empty Condition: `[]`

An empty condition list evaluates to true by default, causing the sequence flow to transition immediately.

2. Callback Tuples

Executed when sequence flow transition occurs. Callback records can be written as:

{callback, Fun}: Evaluates Module:Fun({callback, Source, Target}, Result, PrevState)
{callback, Fun, Module}: Evaluates Module:Fun({callback, Source, Target}, Result, PrevState)
{callback, Fun, Module, Arg}: Evaluates Module:Fun({callback, Source, Target}, Result, Arg)

XML Callback Example:

<bpmn:sequenceFlow id="Flow_3"
  sourceRef="Task_A"
  targetRef="Task_B">
  <bpmn:conditionExpression
    xsi:type="bpmn:tFormalExpression">
    {callback, log_flow_transition, logger_helper}
  </bpmn:conditionExpression>
</bpmn:sequenceFlow>

CALLBACK API FOR ACTIONS

Gateways can invoke actions during flow transitions. Developers implement the action/2 function in their process module:

action({request, From::atom(), To::atom()}, #process{}) -> #result{}

Example implementation:

-module(my_workflow).
-include_lib("bpe/include/bpe.hrl").
-export([action/2]).

% Handle flow request from gateway
action({request, <<"ExclusiveGateway_1">>,
                 <<"Task_Process">>}, Proc) ->
    logger:info("Transition to Task_Process"),
    #result{type = reply, reply = ok, state = Proc};

action({request, From, To}, Proc) ->
    #result{type = reply, reply = ok, state = Proc}.

SCHEDULER IMPLEMENTATION

During the scheduler tick (via bpe:next/1), BPE evaluates gateways using the following mechanisms:

The Gateway Record

Defined in bpe.hrl, the gateway record extends the base task record fields:

-record(gateway, {
    ?TASK,
    type = parallel :: gate(),
    def  = [] :: list()
}).

Exclusive Gateway Branching

For exclusive gateways, BPE evaluates the outgoing flow conditions in order. If all evaluate to false and a default flow is specified (via the def field), it transitions to that default flow. If no default is defined, a runtime error is logged, halting execution:

get_inserted(#gateway{id = Name, type = exclusive,
                      output = Out, def = []},
             _, _, Proc) ->
    case first_matched_flow(Out, Proc) of
        [] ->
            add_error(Proc,
                      "All conditions evaluate to false in "
                      "exlusive gateway without default",
                      Name),
            [];
        X -> X
    end;
get_inserted(#gateway{type = exclusive, output = Out,
                      def = DefFlow},
             _, _, Proc) ->
    case first_matched_flow(Out -- [DefFlow], Proc) of
        [] -> [DefFlow];
        X -> X
    end;

Parallel & Inclusive Gateway Merging (Join)

When multiple concurrent paths merge into a parallel or inclusive gateway, BPE verifies if all other incoming paths have arrived before advancing. It checks the execution history logs (check_all_flows/2) to determine synchronization state. If any path is still pending, execution of the current thread is halted (returns []):

get_inserted(#gateway{type = Type, input = In,
                      output = Out},
             Flow, ScedId, _Proc)
    when Type == inclusive; Type == parallel ->
    case check_all_flows(In -- [Flow#sequenceFlow.id],
                         ScedId)
        of
        true -> Out;
        false -> []
    end;

check_all_flows([], _) -> true;
check_all_flows(_, #step{id = 0}) -> false;
check_all_flows(Needed, ScedId = #step{id = Id}) ->
    case hist(ScedId) of
        #hist{task = #sequenceFlow{id = Fid}} ->
            check_all_flows(Needed -- [Fid],
                            ScedId#step{id = Id - 1});
        _ -> false
    end.

This module may refer to: BPE, TASK, EVENT.
